Heat Resistant Heat Insulation ASA PVC Roma Tile Sheet for Building Roof Covering

Model NO: Spanish roof tile

Usage：Exterior

Surface Finishing：Finished

Length：Customized

Pitch：219mm

Wave Spacing：160mm

Trademark：SHENYU

Color：Multi Color

Whatapp：+86 13924808361

Email: sales01@syrooftile.com

+ Inquire + Inquire Contact Now Contact Now

Heat Resistant Heat Insulation ASA PVC Roman Tile Sheet For Building Roof Covering

Looking for a roofing solution that combines timeless style with cutting-edge performance? SHENYU's Heat Resistant ASA PVC Roma Tile Sheets are the perfect choice for your building’s roof covering. Inspired by the classic Mediterranean design, these Roma-style tiles not only enhance your building’s aesthetic but also offer unbeatable protection against the elements.

Engineered with advanced heat insulation technology, our tiles help keep indoor temperatures comfortable year-round by reflecting heat away from your building. Their heat resistance ensures durability in even the most extreme weather conditions, providing long-lasting performance and minimizing maintenance.

Easy to install, lightweight, and highly durable, these tiles are the ideal solution for both residential and commercial roofing projects. Choose SHENYU for a stylish, sustainable roofing solution that stands the test of time!

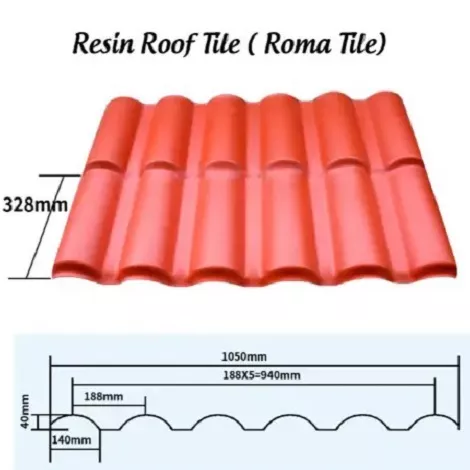

Material	UPVC, ASA-UPVC
Thickness	2.3mm,2.5mm,3.0mm
Length	Customized according to the times of pitch,max 5.8 meters--20 feet container, max 11.8 meters--40 feet container
Width	1050mm,effective width:940mm
Wave spacing	188mm
Wave height	40mm
Pitch	328mm
MOQ	one container,about 4500-6000 square meters
Warranty Period	30 years

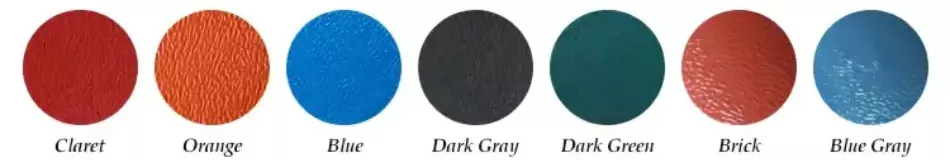

Color	Purplish red, Bright red, Brick red, Orange, Blue,Gray, Dark green, Golden
Screws and Caps	4 sets for one square meter

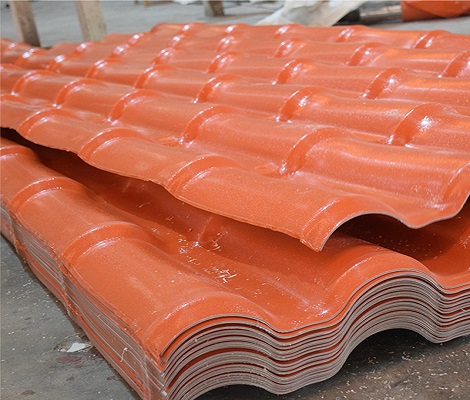

Shenyu ASA PVC Roma Roof Tile

Shenyu ASA PVC Roma Roof Tile uses ASA high weather-resistant engineering plastic (ASA high weather resistant engineering plastic and PVC (polyvinyl chloride resin) as the main material, mixing anti-UV agents, shielding agents, antioxidants, modifiers, and other super weathering chemical ingredients.

The product adopts Europe's advanced triple extrusion technology for one-off processing, including

1. The surface layer-ASA layer
2. The middle layer- backbone layer
3. The bottom layer- abrasion resistance layer

ASA PVC Roma Roof Tile is new design in our companyRoman roof tiles offer a classic choice of roof covering. Their traditional appearance wins them points for aesthetics,Roma roof sheet is prized for its simple, one-piece shingle design which provides a pattern of distinctive ripples across the roof.
Often looks synonymous with clay roof tile, Roma roof sheet enhances virtually any of architecture from small bungalows to large public institutions.

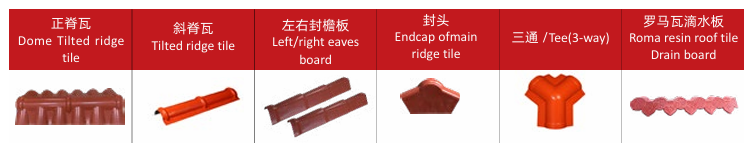

Accessories of ASA Roma Roof Tiles

As a renowned manufacturer of Roma-style synthetic resin tiles, SHENYU not only offers high-quality ASA Roma roof tiles but also provides a complete range of accessories to cater to the needs of various roofing projects. Our comprehensive selection of ASA Roma roof tile accessories includes:

- Dome Tilted Ridge Tile
- Tilted Ridge Tile
- Left/Right Eaves Board
- Endcap for Main Ridge Tile
- Tee (3-Way) Connector
- Roma Resin Roof Tile Drain Board

These essential components are designed to ensure seamless installation and superior performance, making SHENYU your one-stop solution for all Roma roof tile needs. Whether you’re working on residential, commercial, or large-scale roofing projects, our extensive range of accessories provides everything required to complete your roof system with precision and durability.

Product Feature for ASA Roma Roof Tiles

1. 30 years Life Guarantee, 10 Years Color guarantee.

SHENYU Synthetic resin tile is made of imported extra weather-resistant engineering resin, it boasts extraordinary durability in the natural environment. it can maintain its stable color even under long-term exposure to such conditions as ultraviolet radiation, dampness, heat, and coldness.

2. Excellent Corrosion Resistance.

SHENYU Synthetic resin tile can resist corrosion of various chemical substances such as acid, alkali, and salt. The experiment proves that the roofing has no chemical reaction when it is soaked in salt, alkali, and various acids below 60% for 2 hours. It is very suitable to use in places where acid rain often falls and coastal areas.

3. Good Sound Insulation and Heat insulation.

The test shows that the roof boasts a good noise-absorbing effect under the noise of rainstorms and strong wind.

4. Strong Fire Retardant.

Class B1 level tested by the National Fire Department.it is a flame-retardant material.

5.Excellent Waterproof

Dense and non-absorbent, big size also can reduce the joint area.

6.Excellent loading -carrying ability

In Cold areas, the roofing is not damaged or broken on the surface even if snow covers on the roof all year round. The test shows that the roofing neither cracks nor is damaged when the supporting spacing is 660mm and 150kg of load is applied.

7.Excellent heat preservation and heat insulation

The thermal conductivity coefficient is 0.325W/M.K., clay tile is about 1/310, cement tile 1/5,0.5mm thick color steel tile 1/2000. It is shading to make its heat insulation capacity much improved. Experiments show that the heat insulation effect is lower than that of color steel plate 3-4 degrees.

8.Good impact resistance

The best proof is that a 1kg steel ball falling from a 3.0m high place can not make it crack.

9.Excellent insulation

Belong to insulation products, it cannot be damaged in case of accidental discharge. It will be safer in Ray-prone areas to replace metal tiles.

10.Green and environment friendly

It does not contain asbestos and radioactive elements, it can be recycled, and completely meets the requirement of environmental protection.

11.Easy to install

With high installation efficiency and lightweight, it is easy to load and unload. (It needs 4-6 sets of waterproof accessories per square meter)

Foshan Shenyu New Materials Co.,Ltd

Established in 2014 and located in Foshan City, Guangdong Province, Foshan Shenyu New Materials Co., Ltd is a large-scale manufacturer dedicated to the production, sales and research and development of ASA synthetic resin tiles, ASA synthetic classical tiles, ASA-UPVC composite anti-corrosive tiles, APVC composite heat-insulating tiles, UPVC anti-corrosive heat-insulating tiles, Polycarbonate Sheet, WPC Wall Panel and other new roofing building materials.

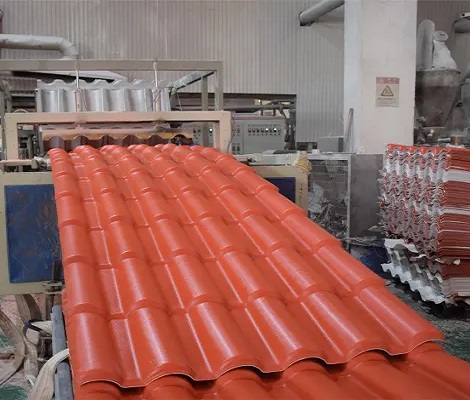

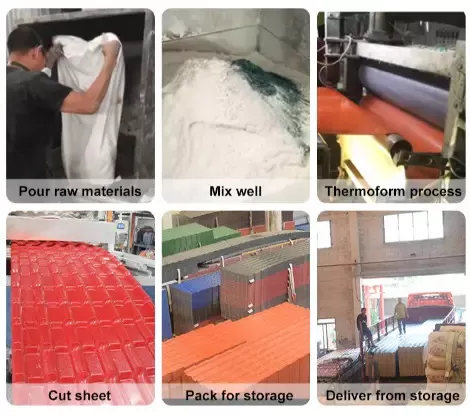

Production Process

All production processes strictly control quality. We take every step meticulously, from raw material selection to the final product inspection. Our dedicated team of professionals ensures that each stage is carried out with precision and care. We are committed to providing high-quality products and professional solutions to customers.

Our efforts have won good trust and appreciation from domestic and foreign customers, which in turn has allowed us to become the leader of the plastic building material enterprise. We will continue to strive for excellence and innovation to meet the ever-evolving needs of the market.

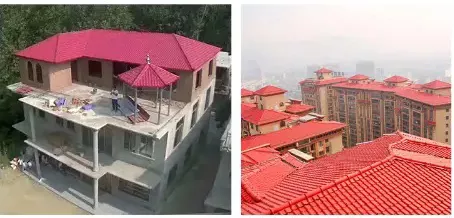

Application

They are widely used in doorways, fences, balconies, window sill, bus stops, store decorations, and advertising columns, especially in Village and urban renovation, etc roof decoration field.

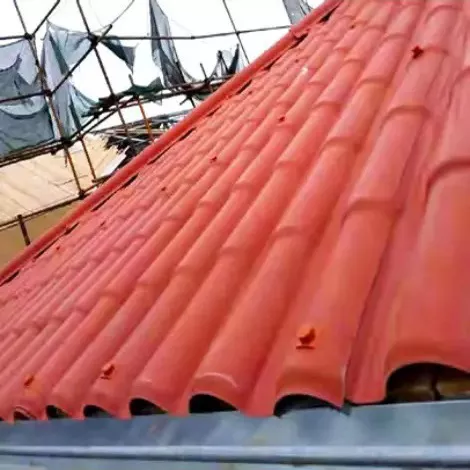

Roma Roof Tile Installation Instructions

Purline can choose square tube (60mmx40mmx3mm) section steel (100mmx50mmx3mm) or anticorrosive flitch(60mmx40mm). The space between purlines is 660mm, and the purlines are arranged from bottom to top. Refer to the local wind direction, and install the main tile in the reverse direction. Erect a tile wave, and do it on both sides simultaneously.

When installing the main ridge tiles, cut a part of the first ridge tile before installation. When installing, the joining place between the main ridge tile and the tilted ridge tile should be sawed to be flat. Install the main ridge tile and the tilted ridge tile before installing the three-way tile.

The fixed parts are special fittings. When fixing, drill a hole that is 2mm bigger than the lead screw of the hooked nail with an electric drill first. It is recommended to choose Φ6.3mm tapping screws.

Certificate

Our company has passed 1S09001 quality system certification and applied for several patents to protect our technological achievements and the uniqueness of our products.

Frequently Asked Questions About Synthetic Roma Style Roof Tile?

Q1.How do Synthetic Roma Style Roof Tiles compare to traditional Roma-style clay tiles?

While traditional clay Roma-style tiles offer a classic, rustic look, Synthetic Roma Style Roof Tiles provide similar aesthetic appeal but with enhanced durability and performance. These synthetic tiles are lighter, more resistant to harsh weather, and require less maintenance compared to their clay counterparts. They also offer greater resistance to cracking, fading, and corrosion.

Q2.Are Synthetic Roma Style Roof Tiles fire-resistant?

Yes, SHENYU Synthetic Roma Style Roofing Tiles are fire-resistant, providing added protection to your property. This makes them a safer choice for both residential and commercial buildings.

Q3.What colors are available for ASA Synthetic Roma Style Roofing Sheets?

SHENYU offers a variety of colors for Synthetic Roma Style Roof Panels, including traditional terracotta shades and other custom colors. These tiles can complement different architectural styles, giving your property a timeless, Mediterranean look.

For more information or to request a quote, please fill out the contact form below! Our team is here to assist you with all your roofing needs!
