High Light Transmission Translucent Corrugated Roofing Panels for Bright, Energy-Efficient Indoor Environments

Durable and Energy-Efficient uPVC Translucent Corrugated Roof Sheets for Optimal Daylighting

SHENYU uPVC Translucent Roof Sheets are engineered for high performance and long-lasting durability. Made from polyvinyl chloride resin with UV-resistant agents and other chemical additives, these sheets offer excellent resistance to aging, corrosion, and impact. With a thickness range of 0.8mm to 3.0mm, they are lightweight yet incredibly strong, making them an ideal solution for a variety of applications, including factory buildings, warehouses, farm markets, and mobile rooms.

These translucent sheets allow natural light to filter through with a light transmission of up to 90%, helping to reduce energy costs while enhancing interior lighting. Available in a wide range of widths (720mm to 1360mm) and wave spacings (63mm to 250mm), they can be customized to fit the unique needs of any project. Our uPVC translucent roof sheets are also flame-retardant (B1 rating), UV-resistant, and offer excellent sound and heat insulation. With a temperature resistance range of -40°C to 120°C, they can withstand extreme weather conditions, providing reliable performance year-round. Choose from a variety of colors, including white, red, blue, green, and gray, to match the aesthetic of your space. Contact us today for more information or to request a free sample!

Product Feature for UPVC Translucent Corrugated Roof Panels

Heat conductivity coefficient:0.325W/m.k  ( Eg. outdoor 40°,indoor 32°)

Soak in salt,alkali and various acids below 60% for 24 hours without chemical reaction,the same type, non-discolouring , no crack.

Under the influence of external noise such as heavy rain and strong wind ,it has good noise absorption effect.

After testing, a kilogram of steel ball falls freely from a height of three meters,and the product will not crack.

Synthetic resin tile main materials in PVC resin oneself belong to flame retardant materials,the national fireproof department to examine fire performance reach even over B1 level.

The insulation products are still intact after electric shock,and are safer to use in mountainous areas and regions with high lightning incident.

Light weight,assemble and unassemble (each square meter need 4-6 waterproof accessories)

No asbestos or any other radioactive elements,recyclable,completely in conformity with environmental protection

Foshan Shenyu New Materials Co.,Ltd

Established in 2014 and located in Foshan City, Guangdong Province, FOSHAN SHENYU NEW MATERIALS CO.,LTD is a large-scale manufacturer dedicated to the production, sales and research and development of ASA synthetic resin tiles, ASA synthetic classical tiles, ASA-UPVC composite anti-corrosive tiles, APVC composite heat-insulating tiles,UPVC anti-corrosive heat-insulating tiles,Polycarbonate Sheet, WPC Wall Panel and other new roofing building materials.

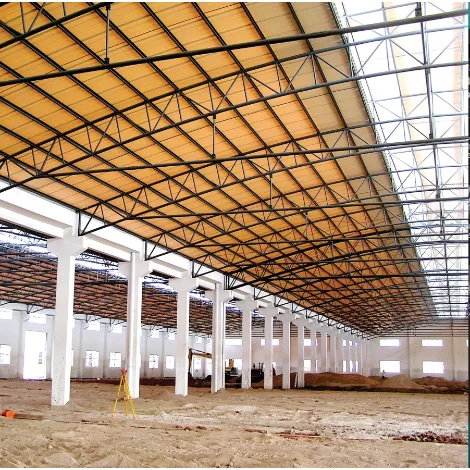

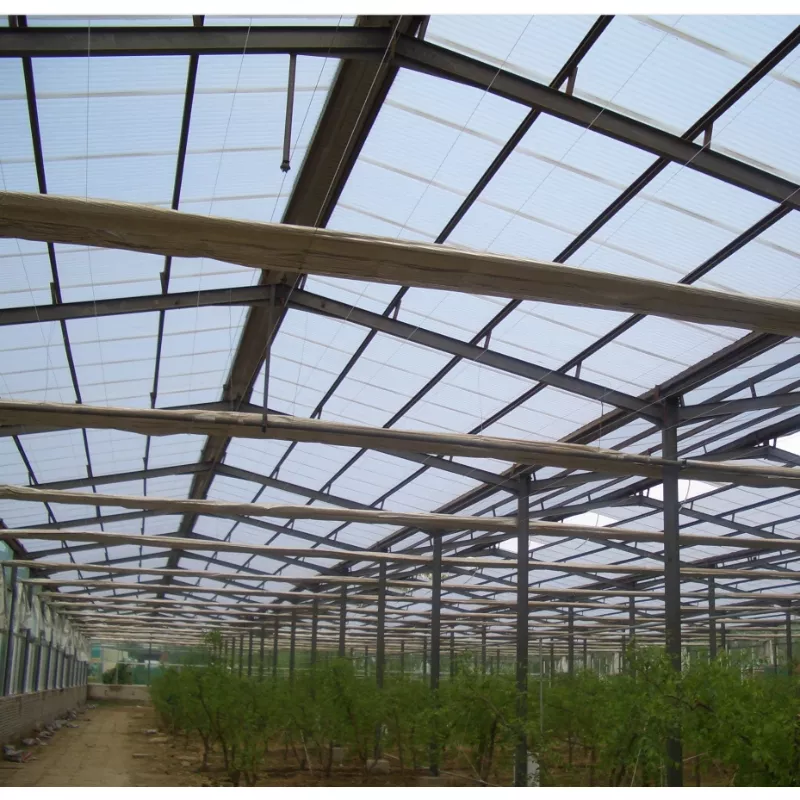

Product Application

PVC roof tile could be widely replacing metal, wood and stone as structural products,building materials, decorative material and so on. It can be used in farm construction, paper mill construction, site construction, warehouse construction, factory construction, garage construction, winery, brick factory, chemical factory and other almost all kind of environmental project.

Installation Instructions

1. All the roof tile should be fixed by our supplied special waterproof accessories.
2. Every sheet should have 4-6 waterproof accessories with each square meter, and the screw must always be at the crest of waves and can not be fastened too tightly or too loosely. Finger can not untie is okay.
3. For top ridge tile, vertical overlaps and eaves, waterproof accessories must be fixed at every wave crest.
4. Sidewall without using flashing board should be fastened by steel straps in heavy windy area.
5. For wall sheet, the overlaps between two purlin should be fixed by two rivets.
6. Sealing ring should be used under the sheet if fixing by hooks, the screw nuts should be tightened properly, not over tight.

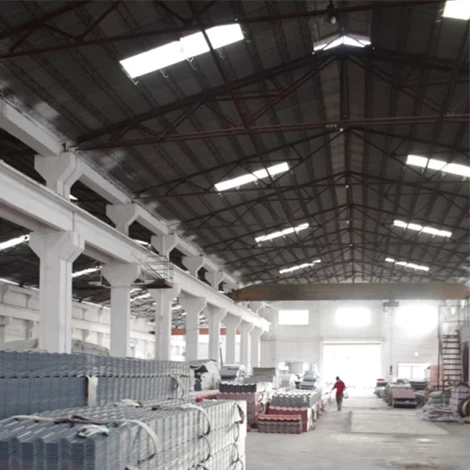

Production Process

Our company has passed 1S09001 quality system certifcation and applied for a number of patents to protect our technological achievements and the uniqueness of our products.

Frequently Asked Questions About UPVC Translucent Corrugated Roof Panels

Yes, uPVC Translucent Roof Sheets can be customized in terms of size, thickness, and color to suit your specific project requirements.

A: Yes, SHENYU provides free samples of uPVC translucent roof sheets. You can request a sample to evaluate the quality and suitability for your project. Contact us for more details on how to receive your free sample!

These upvc roof sheets typically come in a clear or translucent finish, but some may be available in a range of colors for aesthetic customization.
