Chinese Style Lightweight ASA PVC Roofing Tile UPVC Corrugated Roof Sheets for Housetop

Model NO: Chinese roof tile

Usage：Exterior

Surface Finishing：Finished

Length：Customized

Pitch：125mm

Wave Spacing：240mm

Trademark：SHENYU

Color：Multi Color

Whatapp：+86 13924808361

Email: sales01@syrooftile.com

+ Inquire + Inquire Contact Now Contact Now

Chinese Style Lightweight ASA PVC Roofing Tile UPVC Corrugated Roof Sheets for Housetop

Our Chinese Style ASA PVC Synthetic Resin Roof Tiles perfectly blends traditional elegance with modern durability. Made from high-quality ASA synthetic resin and uPVC, these tiles offer exceptional anti-corrosion and waterproof properties, ensuring long-term protection against harsh weather. They are highly favored by homeowners and builders, making them an ideal choice for future homes. With their classic Chinese design, they add a unique charm to your roof while offering reliable, low-maintenance performance.

SHENYU offers factory direct pricing and provides OEM and ODM services, giving you excellent value, durability, and aesthetic appeal. Whether you're working on a renovation or building a new structure, these ASA roof tiles are the ideal choice for creating a strong and beautiful roof.

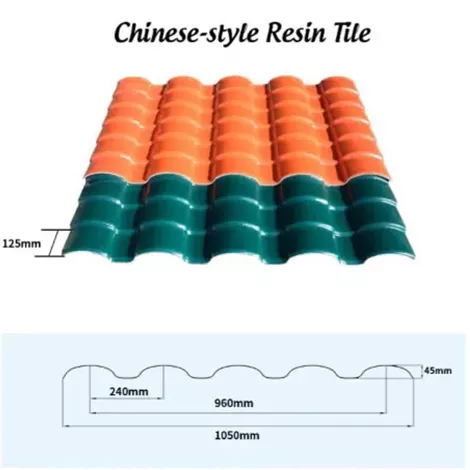

Material	UPVC, ASA-UPVC
Thickness	2.5mm,3.0mm
Length	Customized according to the times of pitch,max 5.8 meters--20 feet container, max 11.8 meters--40 feet container
Width	1050mm
Wave spacing	240mm
Wave height	45mm
Pitch	125mm
MOQ	one container,about 4500-6000 square meters
Warranty Period	30 years
Color	Purplish red, Bright red, Brick red, Orange, Blue,Gray, Dark green, Golden
Screws and Caps	4 sets for one square meter

Shenyu Chinese Style ASA Synthetic Resin UPVC Roofing

Shenyu Chinese Style ASA Synthetic Resin UPVC Roofing, using ASA high weather resistant engineering plastic (ASA high weather resistant engineering plastic and PVC (polyvinyl chloride resin) as the main material, mixing anti-UV agents, shielding agents, antioxidants, modifiers, and other super weathering chemical ingredients.

The product adopts Europe's advanced triple extrusion technology for one-off processing, including
1. The surface layer-ASA layer
2. The middle layer- backbone layer
3. The bottom layer- abrasion resistance layer

Shenyu Chinese Style ASA Synthetic Resin UPVC Roofing is a new design in our company roof tiles offer a classic choice of roof covering. Their traditional appearance wins them points for aesthetics, Roma roof sheet is prized for its simple, one-piece shingle design which provides a pattern of distinctive ripples across the roof.
Often synonymous with clay roof tile, Roma roof sheet enhances virtually any architecture from small bungalows to large public institutions.

Product Feature for ASA Roma Roof Tiles

1. 30 years Life Guarantee, 10 Years Color guarantee.

SHENYU Synthetic resin tile is made of imported extra weather-resistant engineering resin, it boasts extraordinary durability in the natural environment. it can maintain its stable color even under long-term exposure to such conditions as ultraviolet radiation, dampness, heat, and coldness.

2. Excellent Corrosion Resistance.

SHENYU Synthetic resin tile can resist corrosion of various chemical substances such as acid, alkali, and salt. The experiment proves that the roofing has no chemical reaction when it is soaked in salt, alkali, and various acids below 60% for 2 hours. It is very suitable to use in places where acid rain often falls and coastal areas.

3. Good Sound Insulation and Heat insulation.

The test shows that the roof boasts a good noise-absorbing effect under the noise of rainstorms and strong wind.

4. Strong Fire Retardant.

Class B1 level tested by the National Fire Department.it is a flame-retardant material.

5.Excellent Waterproof

Dense and non-absorbent, big size also can reduce the joint area.

6.Excellent loading -carrying ability

In Cold area,the roofing is not damaged or broken on the surface even if snow covers on the roof all the year round.The test shows that the roofing neither cracks nor be damaged when the supporting spacing is 660mm and 150kg of load is applied.

7.Excellent heat preservation and heat insulation

The thermal conductivity coefficient is 0.325W/M.K., clay tile is about 1/310, cement tile 1/5,0.5mm thick color steel tile 1/2000. It is shading to make its heat insulation capacity much improved. Experiments show that the heat insulation effect is lower than that of color steel plate 3-4 degrees.

8.Good impact resistance

The best proof is that a 1kg steel ball falling from a 3.0m high place can not make it crack.

9.Excellent insulation

Belong to insulation products, it cannot be damaged in case of accidental discharge. It will be safer in Ray-prone areas to replace metal tiles.

10.Green and environment friendly

It does not contain asbestos and radioactive element, it can be recycled,completely meets the requirement of environment protection.

11.Easy to install

With high installation efficiency and lightweight, it is easy to load and unload. (It needs 4-6 sets of waterproof accessories per square meter)

Foshan Shenyu New Materials Co.,Ltd

Established in 2014 and located in Foshan City, Guangdong Province, Foshan Shenyu New Materials Co., Ltd is a large-scale manufacturer dedicated to the production, sales and research and development of ASA synthetic resin tiles, ASA synthetic classical tiles, ASA-UPVC composite anti-corrosive tiles, APVC composite heat-insulating tiles, UPVC anti-corrosive heat-insulating tiles, Polycarbonate Sheet, WPC Wall Panel and other new roofing building materials.

Production Process

All production processes strictly control quality. We take every step meticulously, from raw material selection to the final product inspection. Our dedicated team of professionals ensures that each stage is carried out with precision and care. We are committed to providing high-quality products and professional solutions to customers.

Our efforts have won good trust and appreciation from domestic and foreign customers, which in turn has allowed us to become the leader of the plastic building material enterprise. We will continue to strive for excellence and innovation to meet the ever-evolving needs of the market.

Application

They are widely used in doorways, fences, balconies, window sill, bus stops, store decorations, and advertising columns, especially in Village and urban renovation, etc roof decoration field.

Installation Instructions

Purline can choose square tube (60mmx40mmx3mm) section steel (100mmx50mmx3mm) or anticorrosive flitch(60mmx40mm). The space between purlines is 660mm, and the purlines are arranged from bottom to top. Refer to the local wind direction, and install the main tile in the reverse direction. Erect a tile wave, and do it on both sides simultaneously.
When installing the main ridge tiles, cut a part of the first ridge tile before installation. When installing, the joining place between the main ridge tile and the tilted ridge tile should be sawed to be flat. Install the main ridge tile and the tilted ridge tile before installing the three-way tile.The fixed parts are special fittings. When fixing, drill a hole that is 2mm bigger than the lead screw of the hooked nail with an electric drill first. It is recommended to choose Φ6.3mm tapping screws.

Certificate

Our company has passed 1S09001 quality system certification and applied for several patents to protect our technological achievements and the uniqueness of our products.
